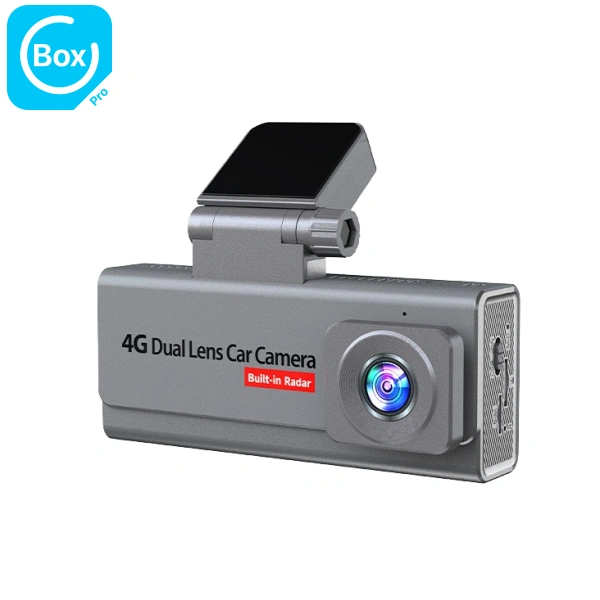

VM01 is a professional 4G dash camera designed for drivers and fleets that need evidence‑grade driving recording and reliable parked‑vehicle monitoring. Dual 1080P lenses, H.265 compression, millimeter‑wave radar motion detection (<0.25s), GPS/LBS positioning and non‑illuminating 940nm rear IR combine to reduce false alarms while capturing clear, useful footage. Ready for global deployment with UBOX PRO app support

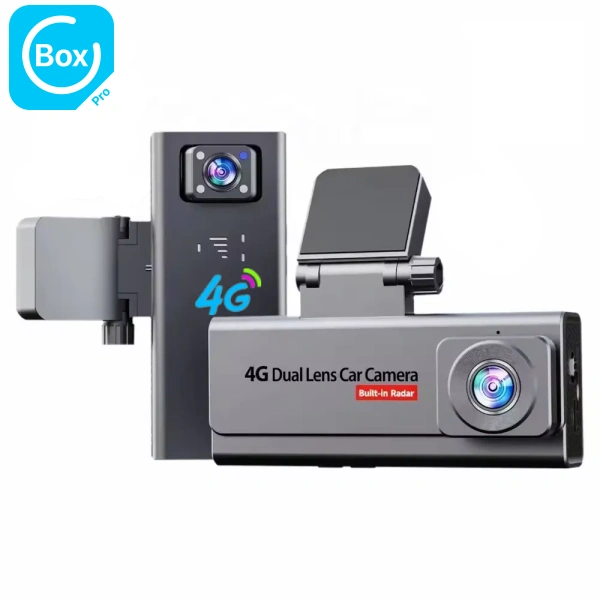

• Dual true HD 1080P lenses (front + rear) with wide FOVs for complete coverage.
• H.265 video compression for efficient storage and clearer clips.
• Fast detection: dual front/rear radar motion detection with response time <0.25s; sensitivity adjustable in app.
• Invisible night vision: rear camera uses 3×940nm non‑illuminating IR LEDs (no visible red glow).
• GPS + LBS positioning with OSD latitude/longitude and driving speed (toggleable).
• Low‑power design and vehicle battery protection (auto shutdown under 11.8V).
• Power options: OBD cable, ACC buck converter, USB‑C 5V≤2A.
• Storage: TF card FAT32 (4GB–128GB) + cloud storage (trial available).

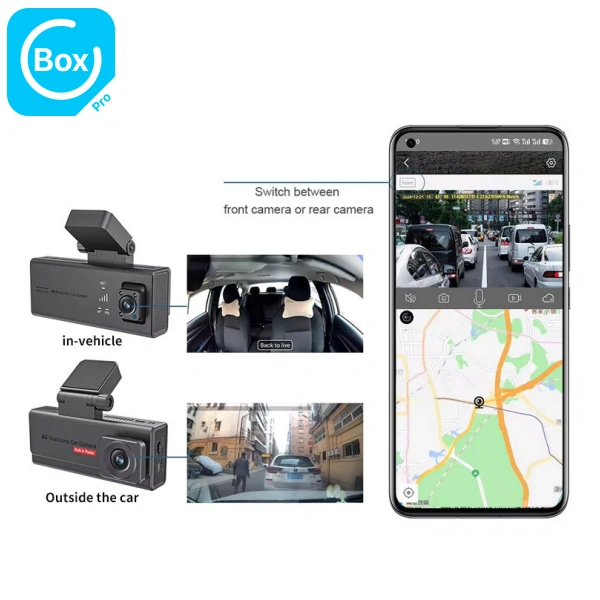

• App: UBOX PRO for live view, playback, notifications, and device settings.
• Support wholesale,OEM,LOGO branding.

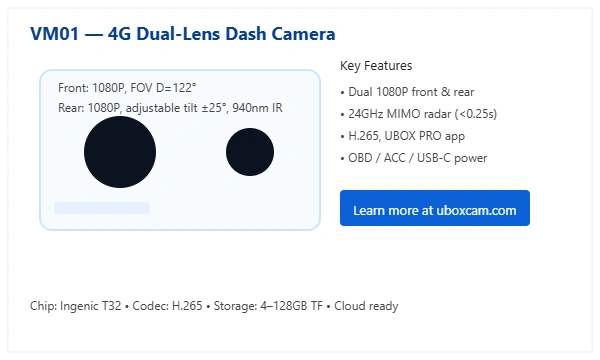

• Product name: VM01
• App: UBOX PRO
• Main control chip: Ingenic T32
• Image sensors: 2 × 1080P BSI CMOS (SC235), 1/2.9"
• Video codec: H.265
• Lenses:
  • Front: F/2.0, f = 2.95mm, FoV D=122° / H=102.5° / V=57° (fixed)
  • Rear: F/2.2, f = 2.28mm, FoV D=170.2° / H=144.2° / V=77.6° (manual tilt ±25°)
• Resolution & streams:
  • App playback: dual‑lens 1920×1080 @15fps
  • Live preview: HD 1920×1080 @15fps; SD 640×360 @15fps
  • PC TF playback: Front 1920×1080 @30fps; Rear 1920×1080 @15fps
• Night vision:
  • Rear: 3 × 940nm non‑illuminating IR LEDs (effective IR distance for rear ≈ 6–8 m)
  • Front: 0.1 Lux low‑light full‑color (no IR to avoid windshield glare)
• Detection & radar:
  • Dual front & rear radar motion detection, response <0.25s
  • Front radar range ≈ 3 m; rear radar range ≈ 5 m
  • Radar type: 24GHz MIMO mmWave
  • G‑sensor: collision and violent vibration detection
• GPS & positioning: GPS + LBS; real‑time position & speed in app; note possible deviations with reflective windshields or poor satellite coverage
• Power & consumption:
  • No internal battery (vehicle‑powered). Supports OBD power cable, ACC buck converter, and USB‑C 5V≤2A.
  • Low‑power design down to ~35 mW for sentry standby; low‑voltage protection triggers shutdown <11.8V.
• Storage: TF Card FAT32 4GB–128GB; cloud storage optional (1‑month free trial)
• Audio: AAC and G.726; mic sensitivity ~‑38dB; external 8Ω / MAX 1W speaker; two‑way voice intercom supported
• Network: UBIA customized low‑power module with GPS; TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P; 4G Nano SIM; versions available for worldwide regions
• Configuration: Bluetooth pairing, QR code scanning, or sound‑wave network configuration
• Physical & environment: mounting via static cling or 3M™ adhesive; operating temperature -20°C to +70°C; humidity ≤80% RH; not waterproof
• Indicators & buttons: 4G signal, charging status, PM privacy mode, AP manual recording indicator

• Dual‑lens coverage for context: The synchronized front and rear 1080P streams give both evidence and context — front license plates and rear impact views are recorded separately for clear incident reconstruction.
• Radar + fast response: MIMO 24GHz radar provides fast motion detection under varied lighting and weather. Combined with the on‑device G‑sensor, VM01 wakes and records in under 0.25 seconds for immediate capture of short events (e.g., door dings, hit‑and‑run). Sensitivity is adjustable in UBOX PRO to match parking environments.
• Invisible IR for discreet night monitoring: Rear 940nm LEDs illuminate without visible glow; useful in residential or public parking where visible IR can attract attention. Front camera relies on low‑lux color imaging to avoid windshield IR reflection.
• Low‑power vehicle protection: VM01 uses industry‑leading low‑power chips and includes automatic shutdown when vehicle voltage falls below 11.8V, protecting the starter battery. After engine start the device automatically resumes when voltage recovers.

• Best wiring for uninterrupted operation:
  • OBD power cable: easiest route to constant vehicle power and automatic driving/parking switching. OBD port is usually under the dash (check your vehicle manual).
  • ACC buck converter cable: recommended for a professional hidden install; connects to vehicle main battery and requires qualified automotive wiring.
  • USB‑C 5V≤2A: suitable for temporary or simple installs; provides continuous power but not ideal for permanent fleet use (use stable charger).
• Installation tips:
  • Mount front camera so view is unobstructed and lines of sight match local regulations.
  • Avoid placing the unit where aftermarket windshield films or metallic coatings could block GPS reception.
  • Calibrate tilt on the rear lens if needed (±25° tilt/pitch).
  • For fleet installations, use a professional installer for ACC/OBD wiring and to ensure reliable low‑voltage protection.

• Dashcam Mode (engine ON): continuous recording to SD card; collisions/vibrations trigger immediate file lock and can upload to cloud.
• Sentry (Sentry Monitoring) Mode (engine OFF): VM01 enters low‑power standby and monitors motion/impacts; on trigger it records and uploads footage to both SD card and cloud (if network available).
• Manual recording (AP button): press AP once during driving to generate a “Manual Alert Video” uploaded to cloud and saved on SD — duration set in UBOX PRO app.
• Privacy Mode (PM button): press & hold PM ~3 seconds to disable rear camera recording and audio — indicator lights show status.

Connectivity, storage & cloud

• Setup: add device via Bluetooth or scan device QR code in UBOX PRO for fast provisioning.
• TF card best practice: use high‑endurance, automotive grade Class 10/UHS‑I cards sized 32–128GB for continuous recording; format in device before first use.
• Cloud services:
  • 4G data: some regions include a 7‑day unlimited trial SIM; recharge required after trial ends.
  • Cloud storage: 1‑month free trial on first activation; subscription required thereafter.
• Playback: app live & playback; PC TF playback recommended with VLC to view dual‑lens split/synchronized video.

Troubleshooting quick guide

• No GPS or wrong location: check for windshield films/IR coatings; try moving vehicle to open sky; confirm GPS enabled in app.
• No cloud uploads: verify SIM/data plan active, signal strength, and that device is registered in UBOX PRO.
• Excessive false alerts: reduce radar sensitivity, restrict sentry hours, adjust mounting angle.
• TF card errors: format with the device, replace with known good, high‑endurance card.

Q: Is the VM01 rear IR truly invisible at night?
A: Yes. The rear uses 940nm non‑illuminating IR LEDs, which produce no visible red glow while providing up to ~6–8 m of usable illumination.

Q: Will VM01 drain my car battery when parked?
A: VM01 uses ultra low‑power standby (down to ~35 mW) and includes low‑voltage protection that shuts the unit off below 11.8V to protect the vehicle starter battery.

Q: What SD card should I buy?
A: Use a high‑endurance Class 10 or UHS‑I microSD card (32–128GB recommended). Format the card in the device before use.

Q: How do I get cloud storage?
A: Register the device in UBOX PRO. First activation includes a 1‑month cloud storage trial. 4G SIM shipments may include a 7‑day data trial; subscription required after trials end.

Q: Can I install VM01 myself?
A: Basic mounting and USB power can be DIY. For OBD/ACC hardwiring and fleet installs, professional installation is recommended to ensure correct wiring and low‑voltage protection.

Warranty, certifications & support

• Warranty: standard manufacturer warranty (confirm region/distributor for terms).
• Certifications: region‑specific versions available; ask sales for CE/FCC/RoHS documentation.
